700 Mhz Broadband Diagrams

Transcom

Used AM Used FM Antenna/Cable

Studio Transmitter Link

Monitor/Control

Used Miscellaneous Equipment

Systems Microwave Antenna

Remote Control Units Emergency Broadcast Systems Monitors Radio Monitor - Control

Exciters Transmitters

NOC

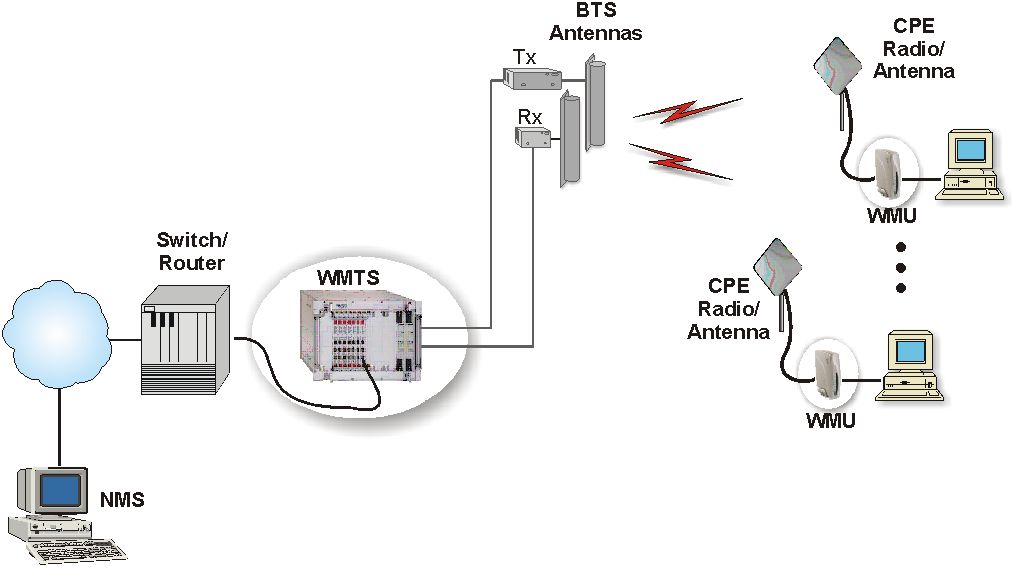

Systems Architecture

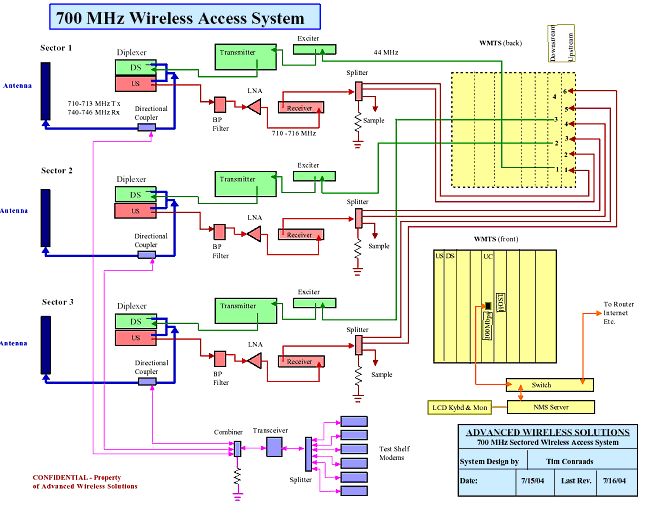

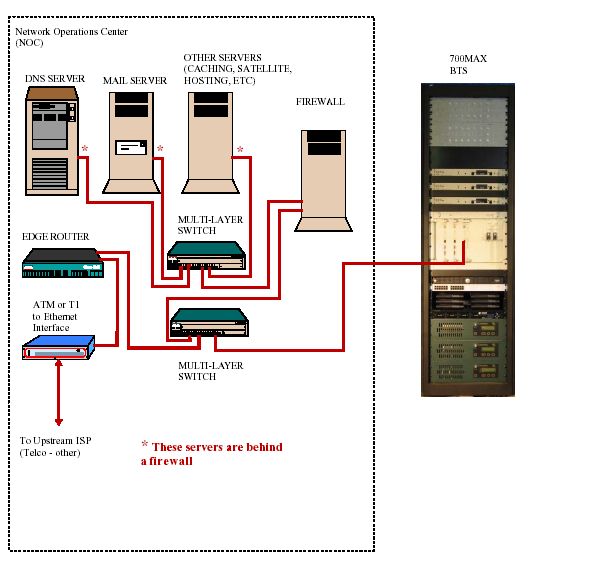

Network Operations Center (NOC) Diagram

Sectored Base Station

Call/Email for more information
