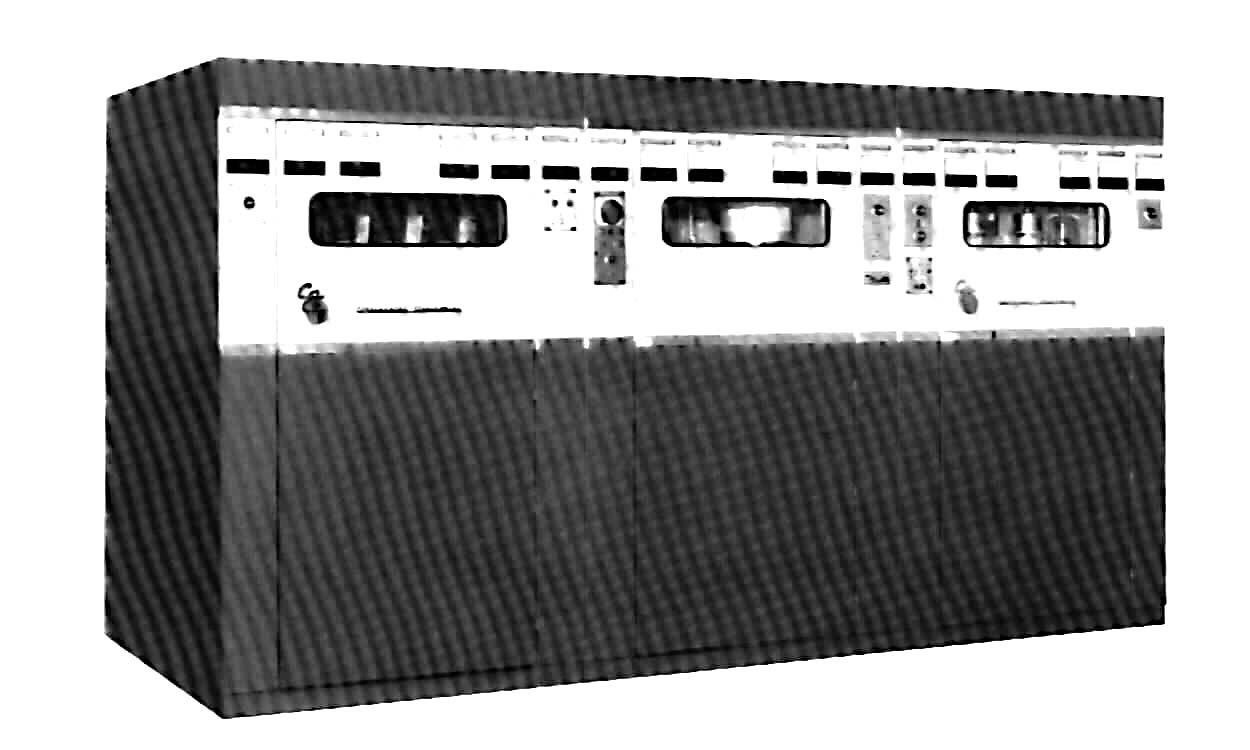

Continental 317C-2



Carrier power:

Rated 50 kW

Capability 60 kW

Power reduction 25 kW or 10 kW



Modulation:

High-level screen-grid/impedance modulation



Emission:

A3



Frequency range:

Any single frequency 535-1620 kHz



Frequency stability:

5 Hz



Audio input:

+ 10 dBm + 2.0 dB at 100% modulation



Audio response:

+0.5dB, 1 0 Hz to 7500 Hz; 1.5dB, 15,000 Hz; ref. to 1 000 Hz; at 70% modulation



Phase response:

+ 20 from 10 to 1,000 Hz, and phase linear to 30 kHz with output lagging 45 at 15 kHz



Audio distortion

less than 2.5%, 20 to 10,000 Hz at 95% modulation



Intermodulation distortion:

3.5% at 90% total modulation by SMPTE test method using 60 and 7,000 Hz in 4:1 ratio



Carrier shift:

2% or less at 100% modulation



Tilt and overshoot:

Clipped sinewave:

3% variation in modulation percentage using 6 dB symmetrical clipping, 30 to 10,000 Hz at 90% modulation



Squarewave:

5% variation in modulation percentage, squarewave frequencies from 30 to 7,500 Hz at 60% modulation



Modulation capability

100% continuous at any frequency 20-10,000 Hz + 125% positive peak with asymmetrical input



Noise unweighted:

-60dB below 100% modulation



Spurious & harmonic emission:

- 8OdB



Output impedance:

40 to 300 ohms as specified by customer



Power source:

46OV, 3 phase, 50/60 Hz, other available by special order



Permissible combined voltage variation:

+5% voltage, +2.5% frequency



Power factor:

Approximately .95



Overall efficiency:

better than 60% at any depth of modulation



Altitude:

7,500 feet (2286 meters) higher by special order



Ambient temperature:

- 4 to 122F (-20 to 50)



Cooling:

transmitter is air cooled



Size:

transmitter is 144" wide, 54" deep, 78" high (365.76 CM wide, 137.16 CM deep, 198.1 CM high) plate transformer enclosure is 24" wide, 46" deep, 72" high (60.96 CM wide, 116.84 CM deep, 183.2 CM high)



Total floor space:

62 sq. ft. (5.8 sq. meters)



Net weight-

transmitter (all cabinets) weighs 4,891 lbs. (2,273 kilos); plate transformer enclosure weighs

1,990 lbs. (903 kilos)



Export shipping:

gross weight 9,700 lbs. (4,400 kilos); 800 cubic feet (22.65 cubic meters)
