Harris Flexstar™
Exciter
with a Crown HD Amplifier
Available in 1.2 KW (combined) or 600W (combined) HD/IBOC FM
Transmitter
Transcom
Corporation would like to offer the following new units
available at a special sale price:
One
New Crown LA600, 600 Watt digital or 1200 Watts
combined digital/analog FM IBOC/HD radio amplifier. This
amplifier is designed specifically to work with Harris
Corporation’s Digital exciters/processors.
Ø
For use in both separate and combined IBOC applications
Ø
NO pre-correction needed for full output power
Ø
Digital only power levels to 600 watts
Ø
Combined power levels to 1,200 watts.
With a new

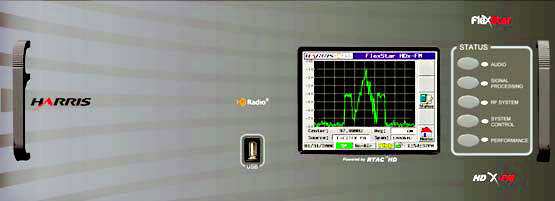

Harris FlexStar™ exciter.
The
FlexStar™ exciter includes the following features:
Ø
Embedded
DSP-based FM, HD or FM+HD exciter
Ø
Direct to
channel digital FM modulation
Ø
Dual
output, Tri-Mode FM, HD, or FM-HD operation
Ø
(two
exciters in one)
Ø
RTAC™
Harris’ Real Time Adaptive Correction
Ø
Digital
Adaptive Group Delay Equalization
Ø
Optimized
correction for FM tube and solid state transmitters
Ø
RF Mode
switching on-the-fly
Ø
Integrated
N+1 control system
Ø
World’s
best FM analog performance
Ø
Built in
synchronous booster (SFN) support
Ø
Easy to
use Graphic User Interface (GUI)
Ø
Spectrum
Display shows real-time performance
Ø
Integrated
digital stereo generator with updated digital composite limiter
Ø
Two
built-in subcarrier (SCA) generators
Ø
Integrated
RBDS generator
Ø
Up to
three external subcarrier inputs
Ø
Auto
Switching between analog, AES3, AES3 AUX, and composite inputs
insures you are on the air
Ø
Compact
design eliminates external racks, fits in any Harris
transmitter, only 12” deep
Ø
Efficient,
easy to service interior
Ø
High
efficiency auto-ranging power supply
Ø
Internal
Harmonic filter for stand-alone transmitter
